TRAY PROGRAMMING MACHINE KR42-2000
The software is easy to operate.
For standard pallet packaging.
With four burn stations.
Support down - pressure burning seat.
- Description
- Feature

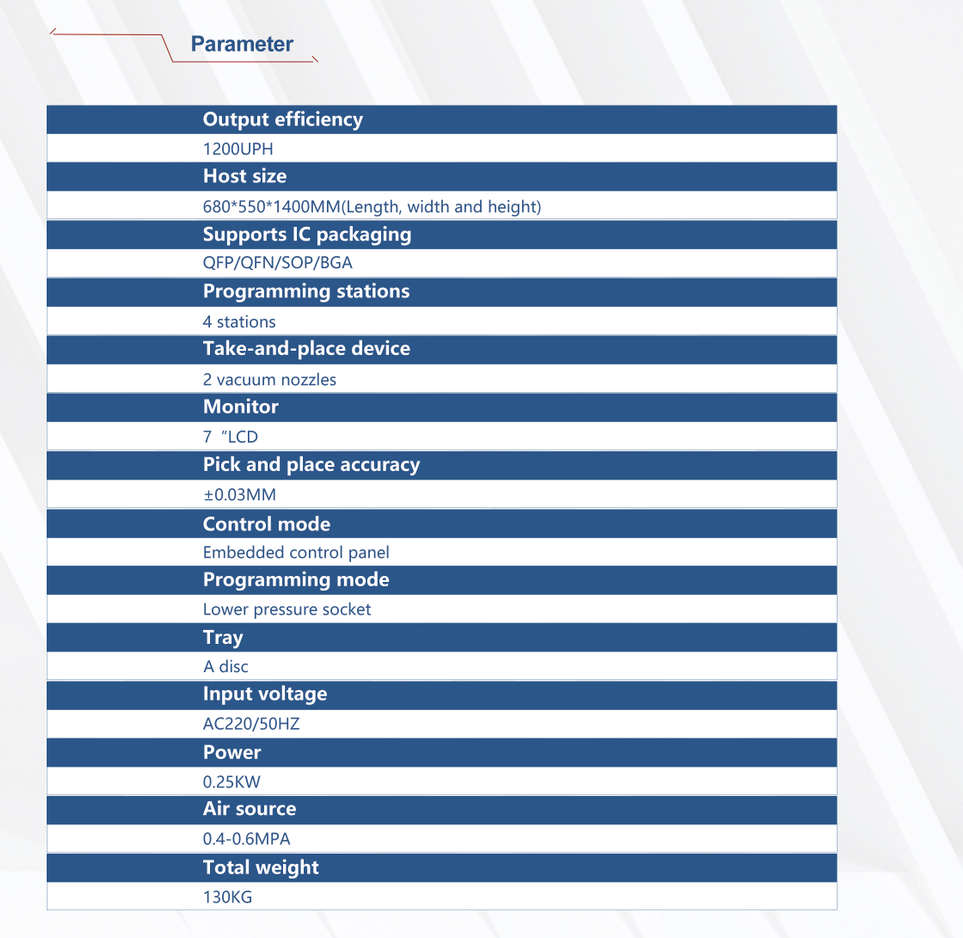

- Parameter
-
This is an IC automatic burning machine that supports IC incoming packaging as a tray, realizes the tray in and out of the tray, and automatically packs after the burning is completed, and automatically distinguishes between OK and NG.
-

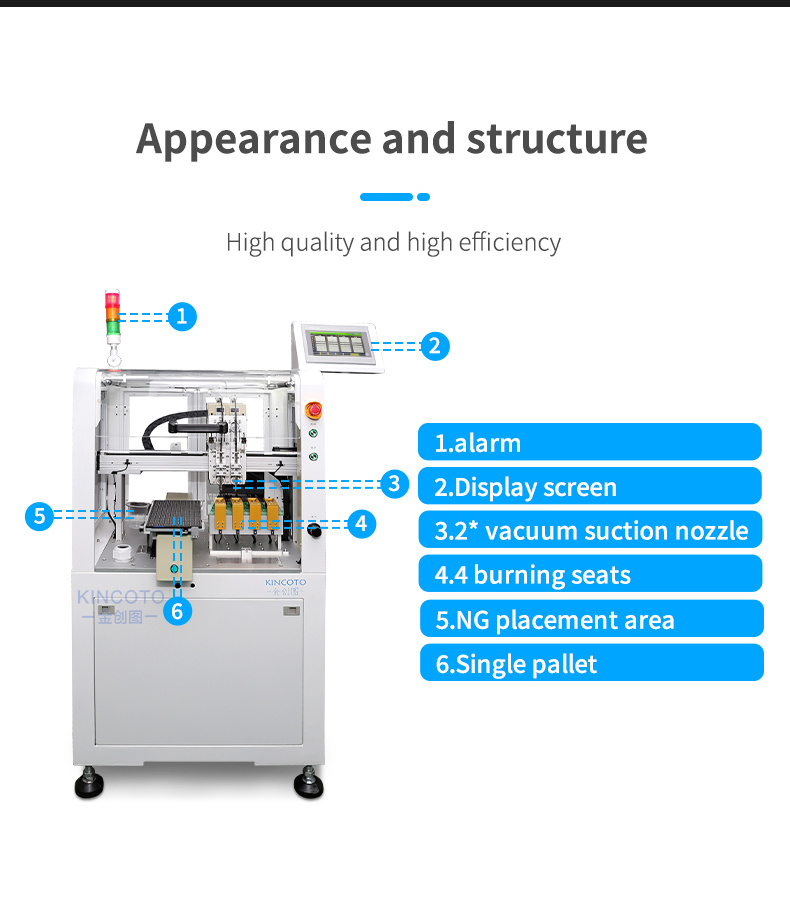

X-Z, Y axis manipulator, double nozzles:
Instead of manually picking and placing a single IC;
One-take-and-place suction pen design;◆ Signal communication connection:
Support offline burner (subject to the actual function!);
When the programming is completed, the OK and NG ICs are automatically distinguished and placed in the corresponding position coordinates that have been set;Feeding and discharge packaging support:
Support tray in and tray out;Burning station:

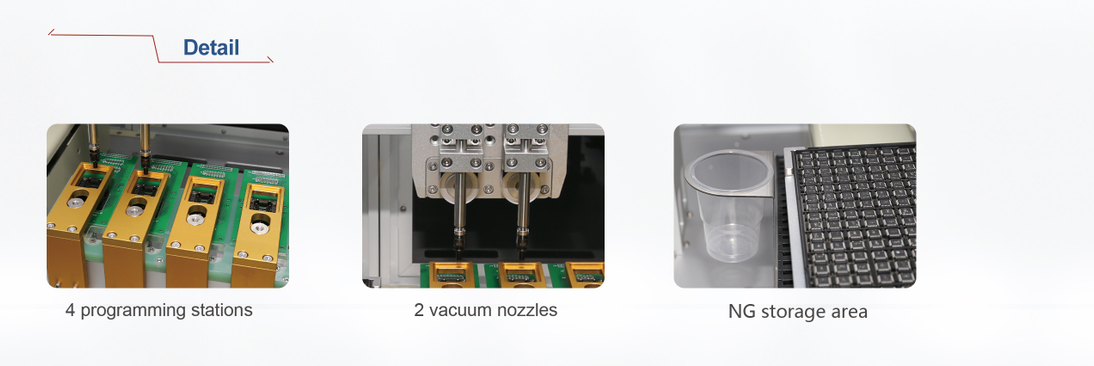

Can customize 1-4 burning stations to start;
Replace the corresponding programming socket for different packages;
The programming sockets of different packages can be pre-installed according to the needs, which is more convenient to use;UPH output:
The burning completion time of burning files is within 5 seconds, and the efficiency is 1500-1800pieces/hour;
With reference to a general mcu, the efficiency is about 1500 pieces/hour;Authority and operation:
Can be second-level authorization, standardized management;
LCD touch operation, convenient and simple;
-
