TRAY PROGRAMMING MACHINE KR82-1800H

1-8 programming stations can be customized to start;< Different packages can be replaced with corresponding programming sockets,

Inquirys

Description
Feature

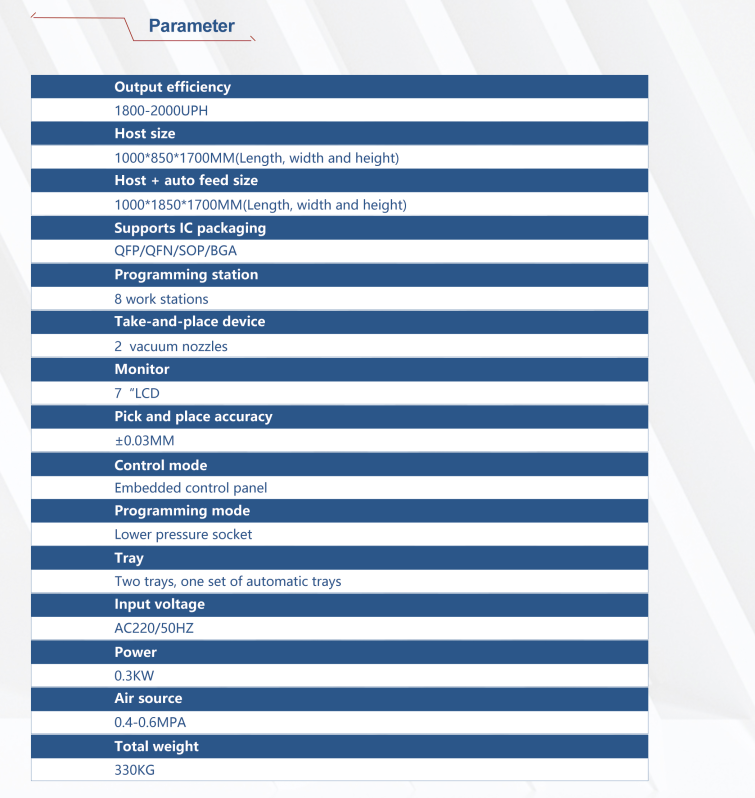

Parameter

KA82-1800H supports IC material packaging as tray, realizes tray in and out, automatically packs after programming is completed, and automatically distinguishes between 0K and NG IC automatic programming machines.

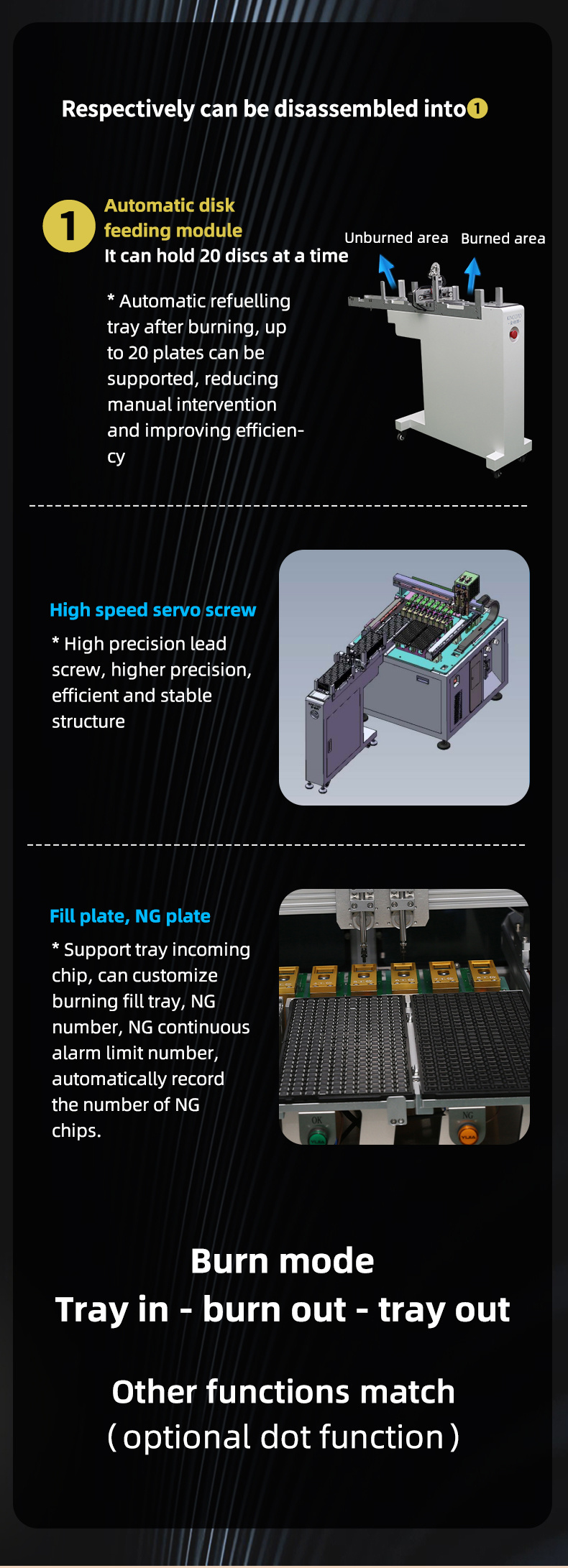

x--z axis manipulator, rotating double nozzle
Replace manual single IC placement
Can rotate 90°/180°IC direction, solving the problem that different batches of incoming materials may have different "point" directions

Signal communication connection
Support offline programmer (subject to the actual function!);
When programming is completed, automatically distinguish between 0K and NG ICs and place them to the corresponding position coordinates that have been set

In and out material packaging support:
Support tray in and out;
WG material output is standard tray

Programming station:
1-8 programming stations can be customized to start;
Different packages can be replaced with corresponding programming sockets,
Different packages can be pre-installed in advance according to needs, which is more convenient to use.

UPH output:
The programming completion time of the programming file is within 1-4 seconds, and the efficiency is 1600-2000 pieces/hour;
Reference 1. SFI FLASH 64Mb is about 1500 pieces/hour;
Reference 2. SFI FLASH 128Mb is about 1200 pieces/hour,
Reference 3. General MCU is about 1200 pieces/hour

Data and formula
You can customize the programming OK and feeding quantity, NG continuous alarm limit quantity, automatically record other production quantities, and customize the programming formula to facilitate the replacement of programming with different contents
